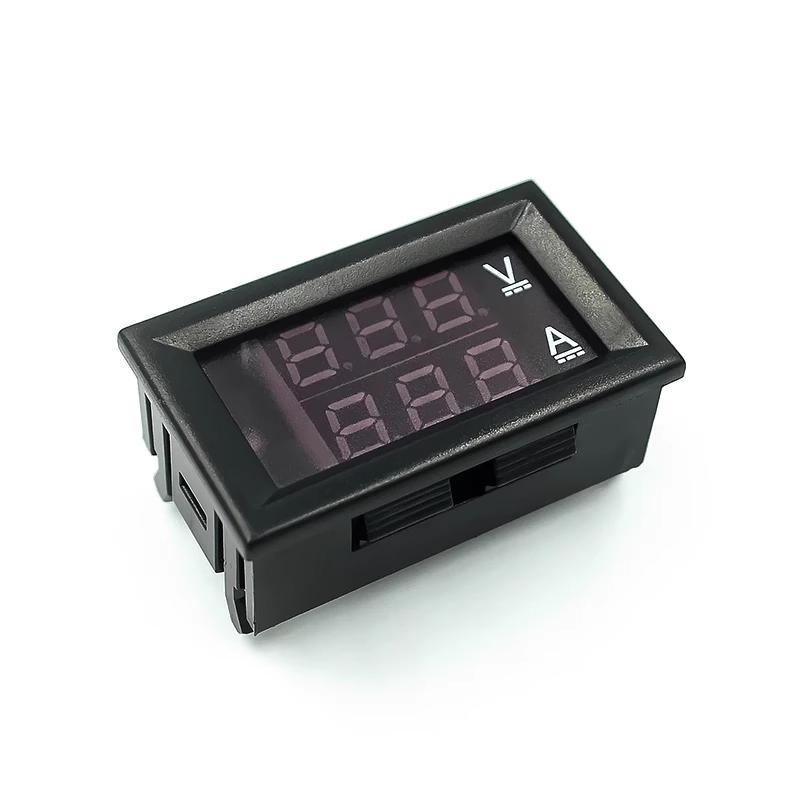

Mini Digital Voltmeter Ammeter DC 100V 10A Panel Amp Volt Current Meter Tester 0.28 Blue + Red Dual LED Display With Lines

Description:

Model: DC0-100V1A 10A 50A 100A

Color classification: 1A red-blue, 1A red-red, 10A red-blue, 10A red-red, 50A red-blue, 50A red-red, 100A red-blue, 100A red-red, 50A red-blue-shunt, 50A red-red-shunt, 100A red-blue-shunt, 100A red-red-red-shunt

Technical Parameters:

 Voltage measurement range 0.0V-100V

 Current test range 0-999mA, 0-10A, 0-50A, 0-100A (4 ranges optional)

 Power supply range: DC4-30.0V

 Voltage error ±0.1%

 Current Error ±1%

 External shunt specification: 75 mOhm

 Operating current: <20mA

 Refresh speed: about 300mS once

 Display: Double 3-position 0.28" LED digital tube

 Display colors Red + Red, Red + Blue. Optional

 Lead length 15cm

 Dimensions 48 x 29 x 22 mm, LxWxD;

 Mounting holes 46 x 27 mm

 Operating temperature: -10°C~65°C

Notes:

1. The meter head with a range of 50A or 100A must be connected to the shunt before it can be powered on, otherwise it will burn out. After buying 50A 100A, customers will use it. If you don't even buy a shunt, please be careful. Look at the wiring diagram more. If you don't know how to use it, please don't shoot it. We do not accept returns for samples. Please be merciful in your small business.

2. The power supply range of this meter is 4~30V (it will burn out if it exceeds the range), and the measurement range is 0~100V.



Package include: A digital current and voltmeter
