3D Touch Printer Accessories Automatic Leveling Sensor Hot Bed Precise Printing Ender3/3S Diy

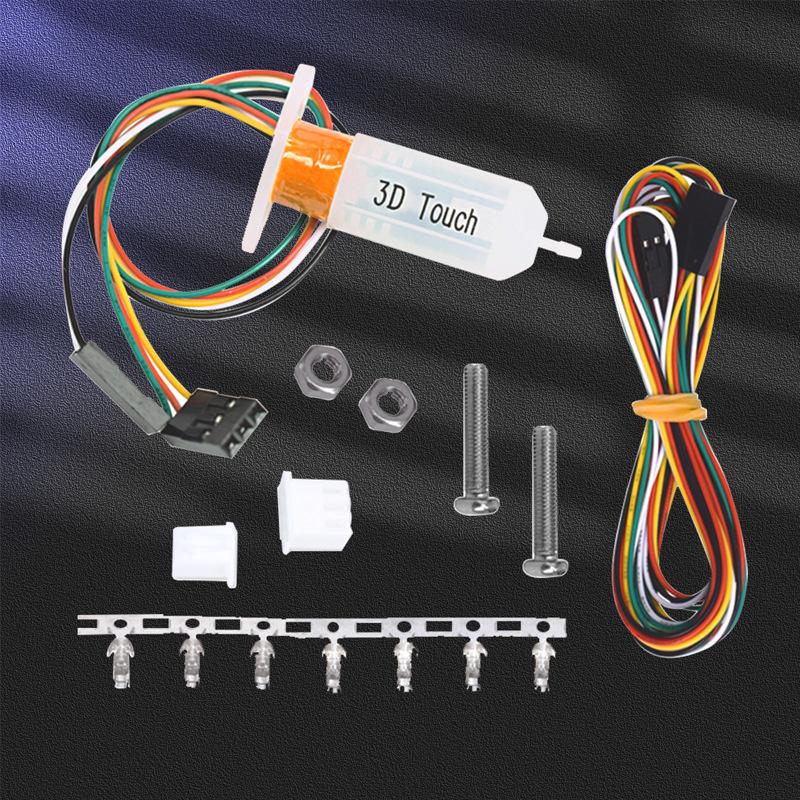

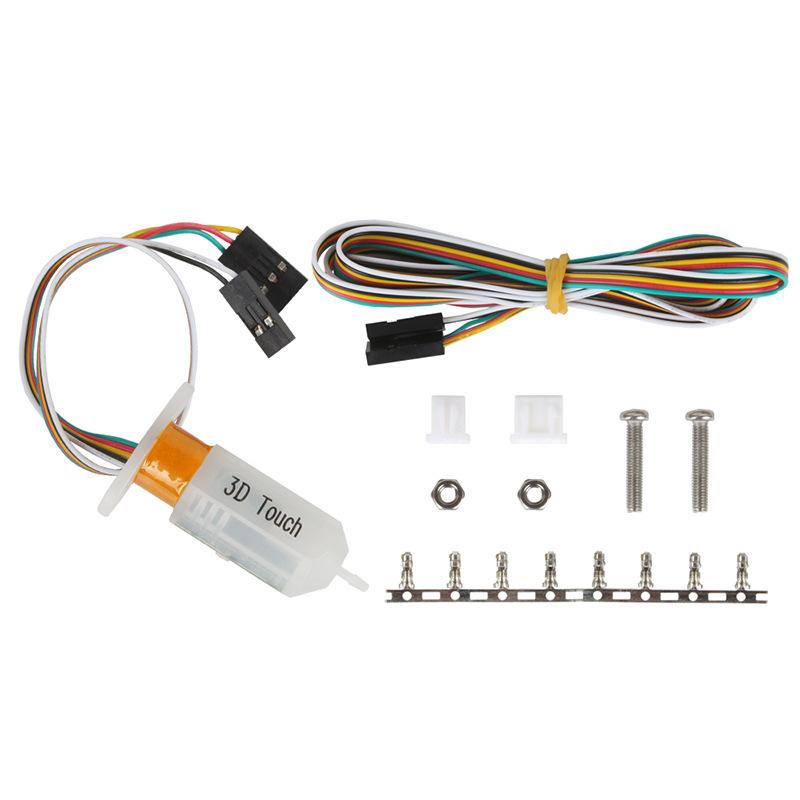

3Dtouch+bracket

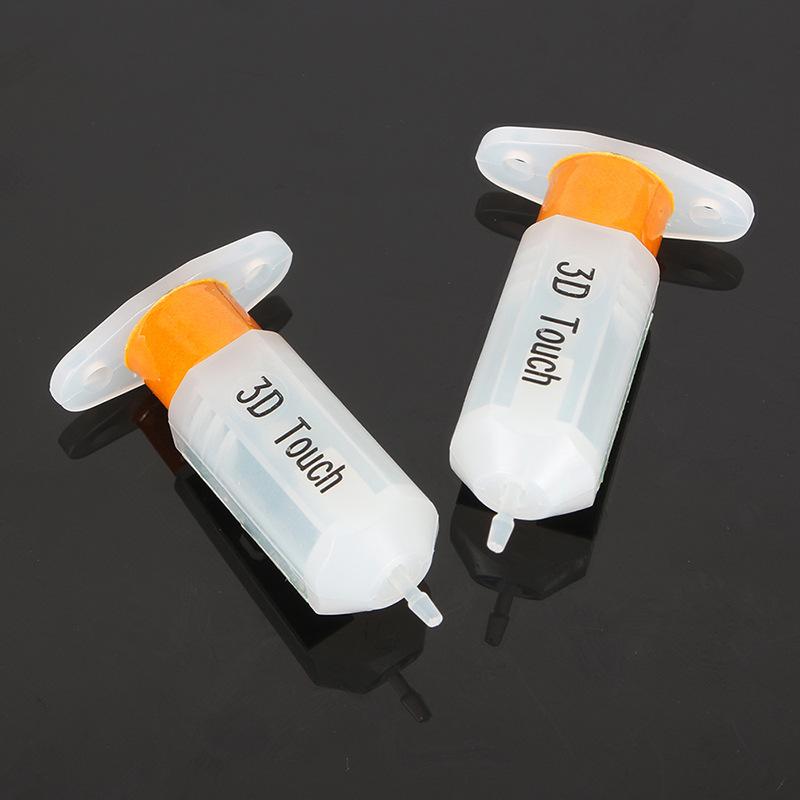

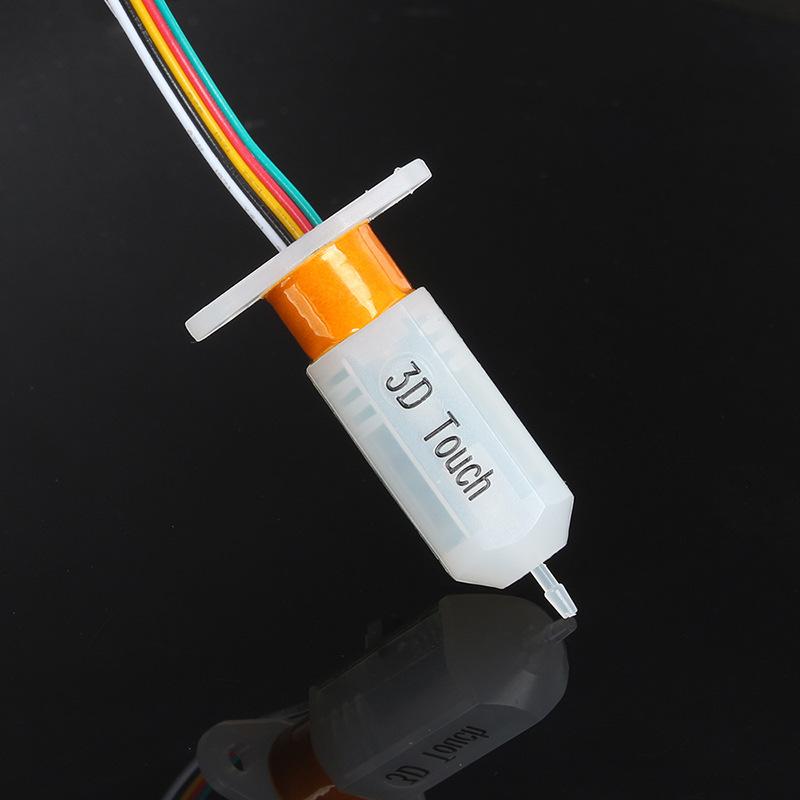

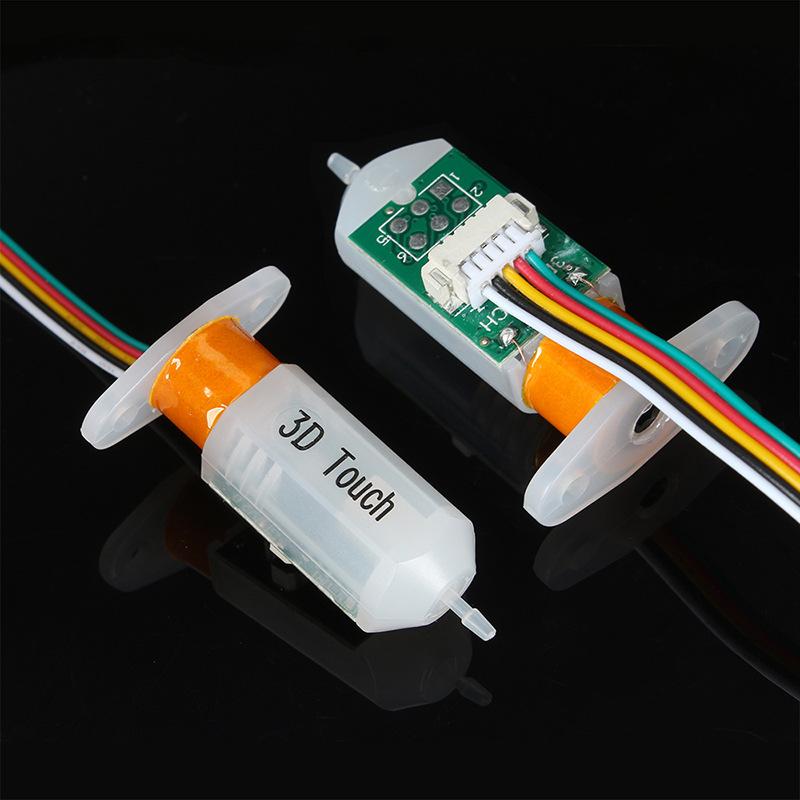

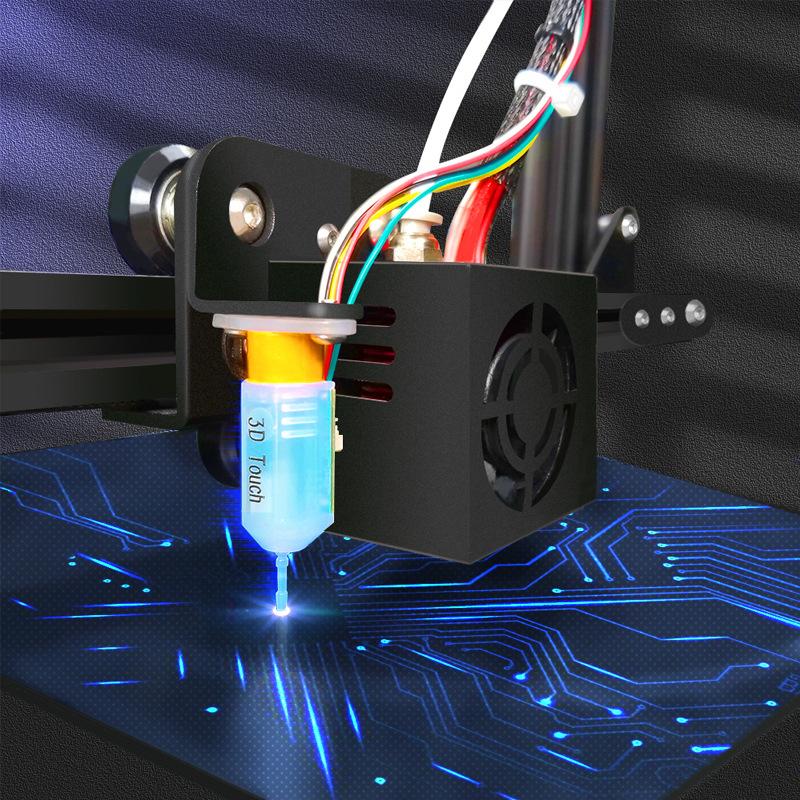

3dtouch is an automatic leveling sensor used for 3D printers, which can accurately measure the slope of the printed surface. It can greatly improve the printing accuracy of your 3D printer.

Three simple, intelligent, and accurate dtouch functions. It can be used with almost any type of bedding material, such as glass, wood, metal, etc.

The main functions and controls of 3dtouch are the same as most automatic bed level sensors, consisting of an RC servo and a micro switch, so 3dtouch can be used on almost every 3D printer control board.

By using progressively designed solenoids and Hall sensors, 3dtouch can integrate high precision into such a simple structure. In order to make it more convenient to use and bring you a more enjoyable printing experience, we have added multiple intelligent functions such as self check, false alarm, alarm resolution, and test mode to the m119.

feature

1 Simple

The 3dtouch structure is compact and simple, making it easy to apply. Collecting information and configuring firmware will be an easy task, as the working principle of 3dtouch is similar to that of a typical automatic bed leveling sensor.

2. Smart

Self check: Test by pushing the needle twice when powered on

Alert: If a problem is found during self inspection or operation, LED lights will flash

3 High precision

At this accuracy, the repeatability standard deviation of 3dtouch is approximately 0.005 millimeters.

If you choose 3dtouch, your 3D printer will be a first-class masterpiece, bringing you a pleasant experience.

4. Innovative solenoid: super energy-saving

In the idle state, whether the pin is pulled out or retracted, the solenoid does not have any current flowing through it. The average standby current of the entire device is below 15mA, while in the working state, the pin suddenly moves for about 100ms, and the current below 300mA flows into the device.

Low power consumption or even more Joule heat reduction to prevent heat issues.

5 Technologies

3dtouch consists of atmel attyny13a, solenoid, and thumbnails.

6-width bedding selection

3dtouch does not use optical sensors or proximity (inductance/capacitance).

3dtouch adopts Hall effect control with high accuracy. Therefore, the bed material can be freely chosen.

7. Optimized structure: larger construction size

3dtouch has a small volume and is technology intensive. The construction size can be adjusted larger than other existing automatic bed level sensors.

The 3dtouch uses the existing RC servo motor signal intact, so simply plug the 3dtouch into the same pin after removing the servo motor.

specifications

Voltage: 5V

Current: 15mA

Maximize. Current: 300ma

Cable length: 150mm

Liquid weight: 10g
